Aluminum Series · In Partnership with Uni-K Fenestration
NARROW ALUMINUM
A turnkey narrow-frame aluminum door system engineered for coastal environments — slim sightlines, HVHZ impact approval, and two timeless design languages.
A Coastal Partnership
Built for the coast, start to finish.
Palm City Ironworks has partnered with Uni-K Fenestration to bring consumers a turnkey solution for areas that tend to require doors rated for coastal environments.
Coming soon in 2026, Palm City Ironworks will offer several narrow-frame aluminum door configurations available for purchase. For questions, please contact your sales rep.
Availability
Just released
Impact Certification
HVHZ · FL47205
In Partnership With
Uni-K Fenestration
Two Design Languages
Vintage Minimal, or Vintage Colonial.
1 Lite Pattern Only
Vintage Minimal
Uninterrupted glass framed in the slimmest possible aluminum profile. A single full lite for maximum light and the cleanest modern sightlines.
Horizontal True Divided Lites

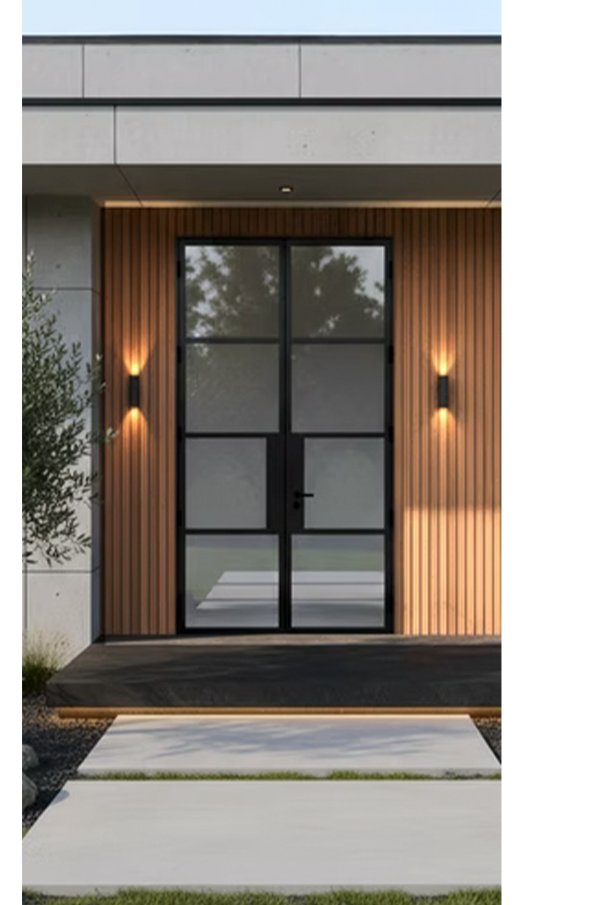

Vintage Colonial
Horizontal true divided lites lend classic rhythm and architectural character — the grid-work of a heritage entry, executed in modern aluminum.
Slim Sightlines
More glass, less frame — from wall to wall.
Specifications
Two styles, one engineered platform.
| Specification | Vintage Minimal | Vintage Colonial |
|---|---|---|
| Lite Pattern | Full-Lite (1 lite only) | Horizontal True Divided Lites (TDL) |
| Configurations | Outswing, Full-Lite only | Outswing only |
| Frame Depth | 6″ | 6″ |
| DP Rating | 60 psf ± | 60 psf ± |
| Max Panel — Double Door | 96″ × 120″ | 96″ × 120″ |
| Max Panel — Single Door | 48″ × 120″ | 48″ × 120″ |
| Glass | Solarban 70 Laminated | Solarban 70 Laminated |
| Insulated | Coming soon | Coming soon |
| Impact (HVHZ) | Approved · FL47205 | Approved · FL47205 |
| Non-Impact | Site-Specific Engineering | Site-Specific Engineering |
Insulated glass options coming soon. Non-impact applications require site-specific engineering. Max panel sizes shown are maximums; final sizing confirmed per project.
Configurations
Configured to the opening.
Minimal & Standard
Standard
Minimal
One Side
Both Sides
Colonial — True Divided Lites
One Side
Both Sides
Fixed lites and transoms combine to fill any opening. Ask your rep about custom configurations.
Frame Options
Two frame depths.
Option A
1.969″ sill leg. The slimmer profile for a tighter, more minimal reveal.
Available for Types A – B – C
Option B
1.575″ sill leg. The full-platform frame with the broadest structural range.
Available for all Types
Frame Depth
Intermediate Mullion
Meeting Stile
Colors & Finishes
Powder-coat and wood-look.
Powder-Coat Colors
Wood-Look Finishes
Wood finishes only available in AAMA 2604 finish.
Best Practices
Rely on your sales team.
These units are engineered for coastal environments and carry HVHZ impact approval under Florida approval FL47205. As with any exterior opening, overhang and exposure influence performance.
Contact your sales rep for product suitability in coastal applications or projects with minimal overhang.
Contact Your Sales Rep →Impact & Non-Impact
Site-specific engineering available.
Coming 2026
Be first to specify Narrow Aluminum.
Narrow-frame aluminum configurations arrive in 2026. For availability, lead times, and project suitability, reach out to your Palm City Ironworks sales rep.
